Overview

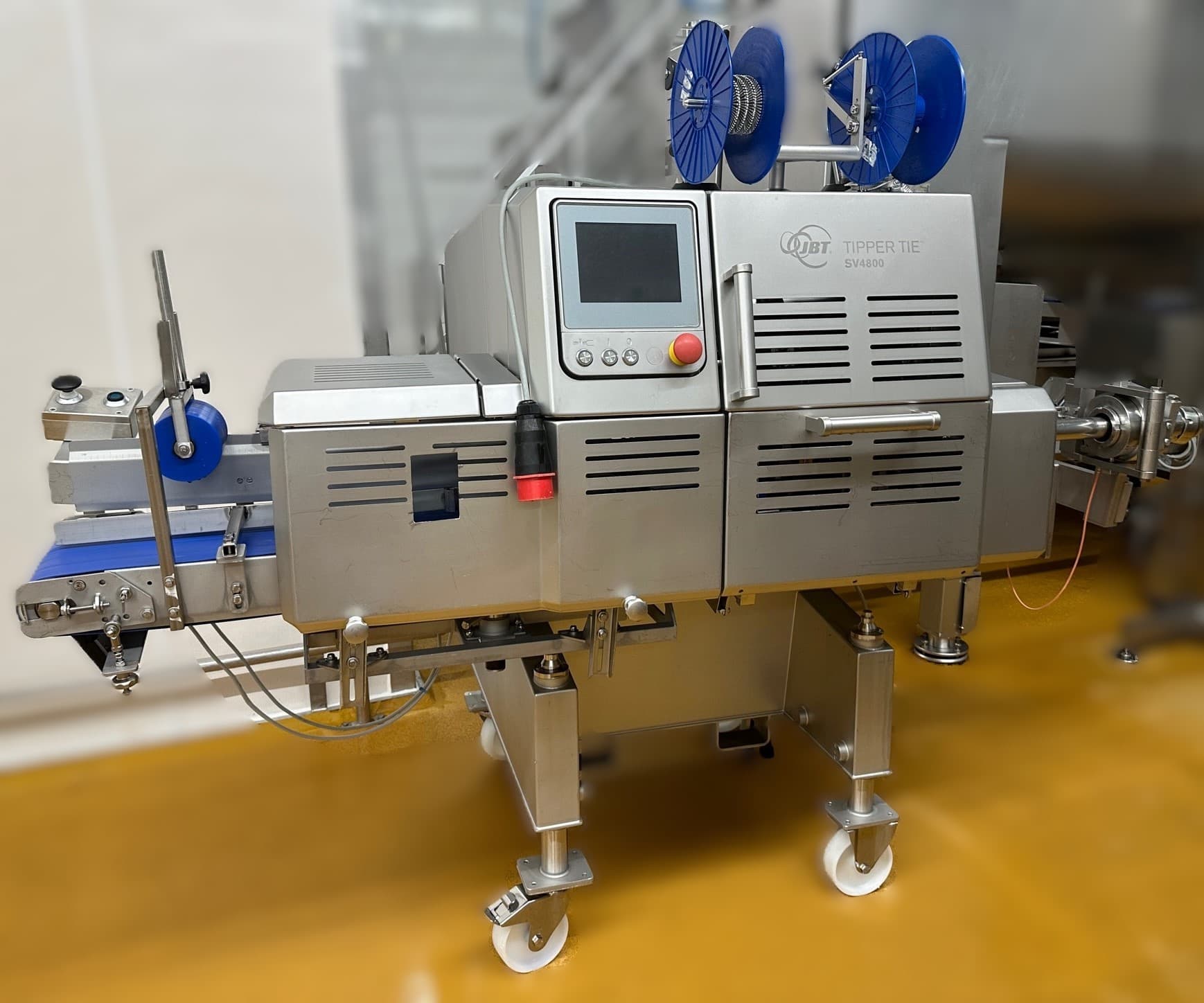

This Automatic Double Clipper, type: JBT TIPPER TIE SV4800 was built in 2020 in Germany.

SV4800 is the ideal automatic clipping system for slicer ware and shaped products with diameters from 45mm to 160mm. It processes all known plastic, fibrous, and collagen casings fast and safely.

Applications – sausage, deli meats, ham, fresh ground meats, whole muscle meats, non-meat proteins, fresh ground fish, surimi/fish sausage paste, raw/frozen/refrigerated pet food, pumpable cheese, soup, sauce, ground fruits and vegetables

Spreading voider system enables processing of ham products in all standard artificial casings up to caliber 160mm

Clip pressure monitoring system prevents machine damage due to operating errors

Quick-release swivel mechanism for casing brake allows fast casing change without moving clipping head, minimizing downtime and maintenance

Swivel-mounted discharge conveyor ensures consistent product caliber due to programmable and variable belt speeds

Smooth, inclined surfaces and excellent accessibility to all areas enable fast and hygienic cleaning

Technical Details

Width 2.339 mm (92.08”)
Depth 1.295 mm (50.98”)
Height 1.756 mm (69.13”)
Supply voltage 3x400 V, 50 or 60 Hz
Fuse protection2.8 kW
Protection class IP65
Air consumption 0.39 nl/cycle
Compressed air 6–7 bar ( 87–101 psi)
Caliber range 45–160 mm (2–6.3”)
Speed up to 120 portions/minute
Clip type E400 series / Z400 series
Loop type TeQu-S
Total spreading 250 mm
Noise level 75 LpA [dB(A)] (according to EN ISO 11204)
Weight 800 kg (1.763 lbs)

Scope of delivery

Automatic Double Clipper| JBT TIPPER TIE | SV4800| 2020

Filters

Filter

Industry Categories

View All

food

Beverage

Categories

View All

Rinsing

Filling

Fat production & handling

Stirring machines & bakery mixers

Separators

Delicatessen machinery

Packaging machinery

Grain processing machines

Process Technology

Dairy plant equipment

Fruit-, & vegetable processing

Blowmoulding Machines

Fish processing

Labelling

Cooking vessels

Mixing machinery

Inspection

Keg Technology

Capping & Decapping

Washing

Complete Filling Lines

Confectionery production

Meat processing

Palletizing

Bakery-, pastry equipment

Carton Packing

Packaging

Decanters

Food smoking equipment

Tunnel Pasteurizer

Other Machinery

Brewing & Fermenting

Dryer

Laboratory equipment for food

Price

Country

Manufacturers

Year

Buy Used Beverage Machines

Check out our current used beverage machinery offers.

Products

Ilapak - 1995 - Netherlands

Tubular Bag Machine

Sealpac - 1999 - Germany

tray sealer

POLYCLIP - 2003 - Germany

Clipper

VC 999 - 2002 - Germany

tray sealer

Sealpac - 2012 - Germany

tray sealer

Sold

JBT - 2020 - Germany

Clipper

Sold

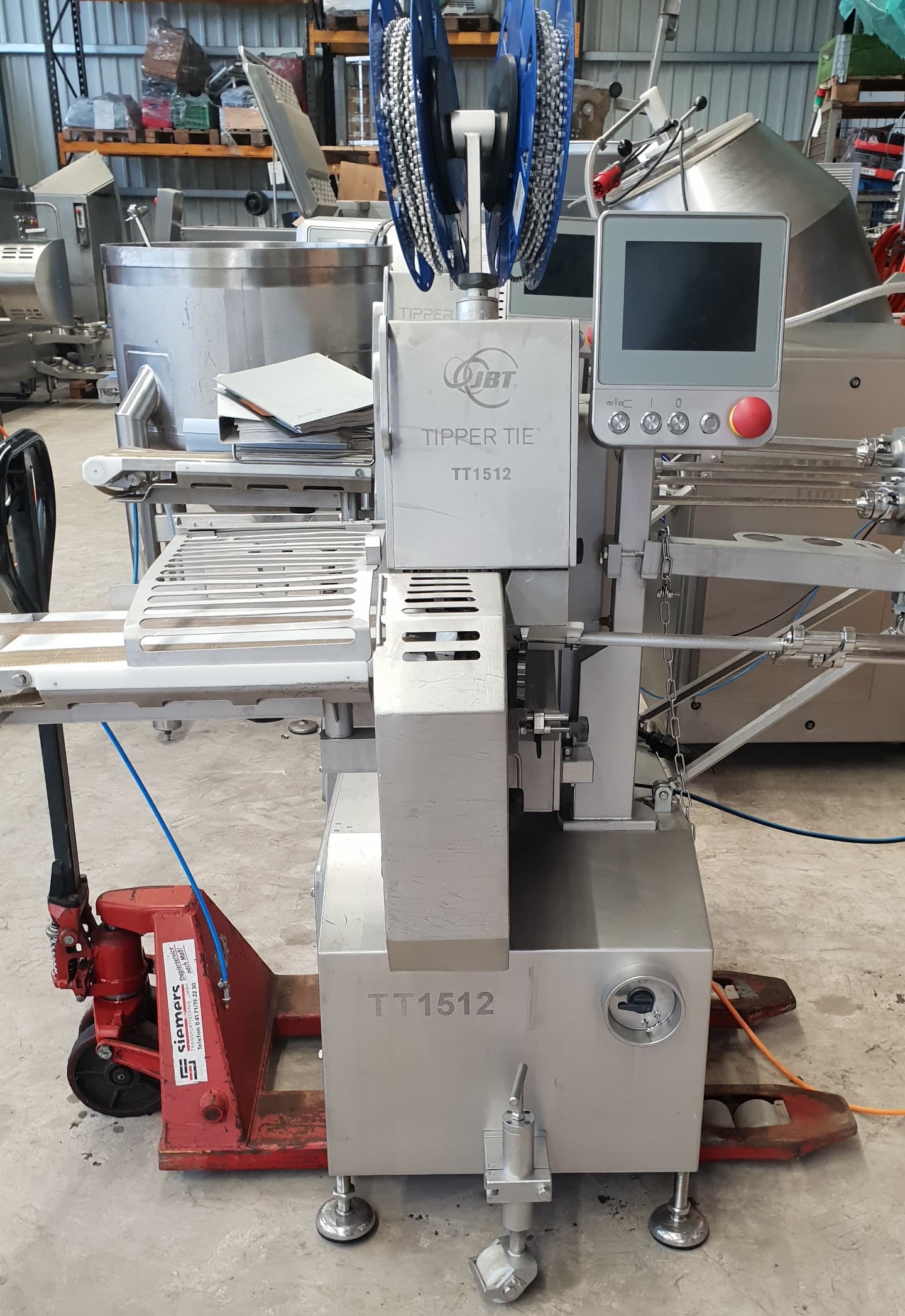

Tipper Tie - 2018 - Germany

Clipper

Sold

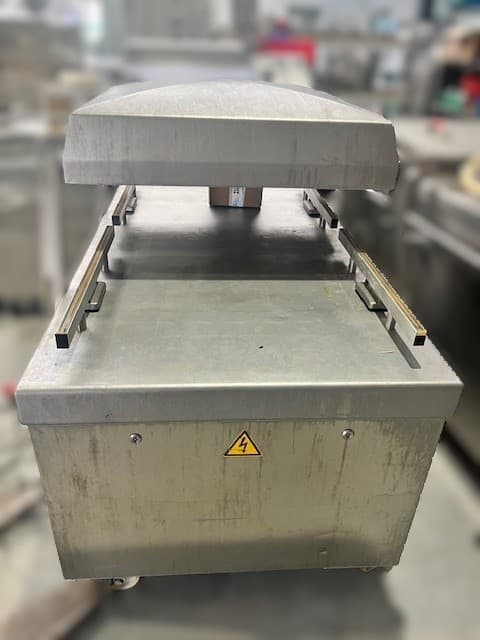

Multivac - 2005 - Germany
