Overview

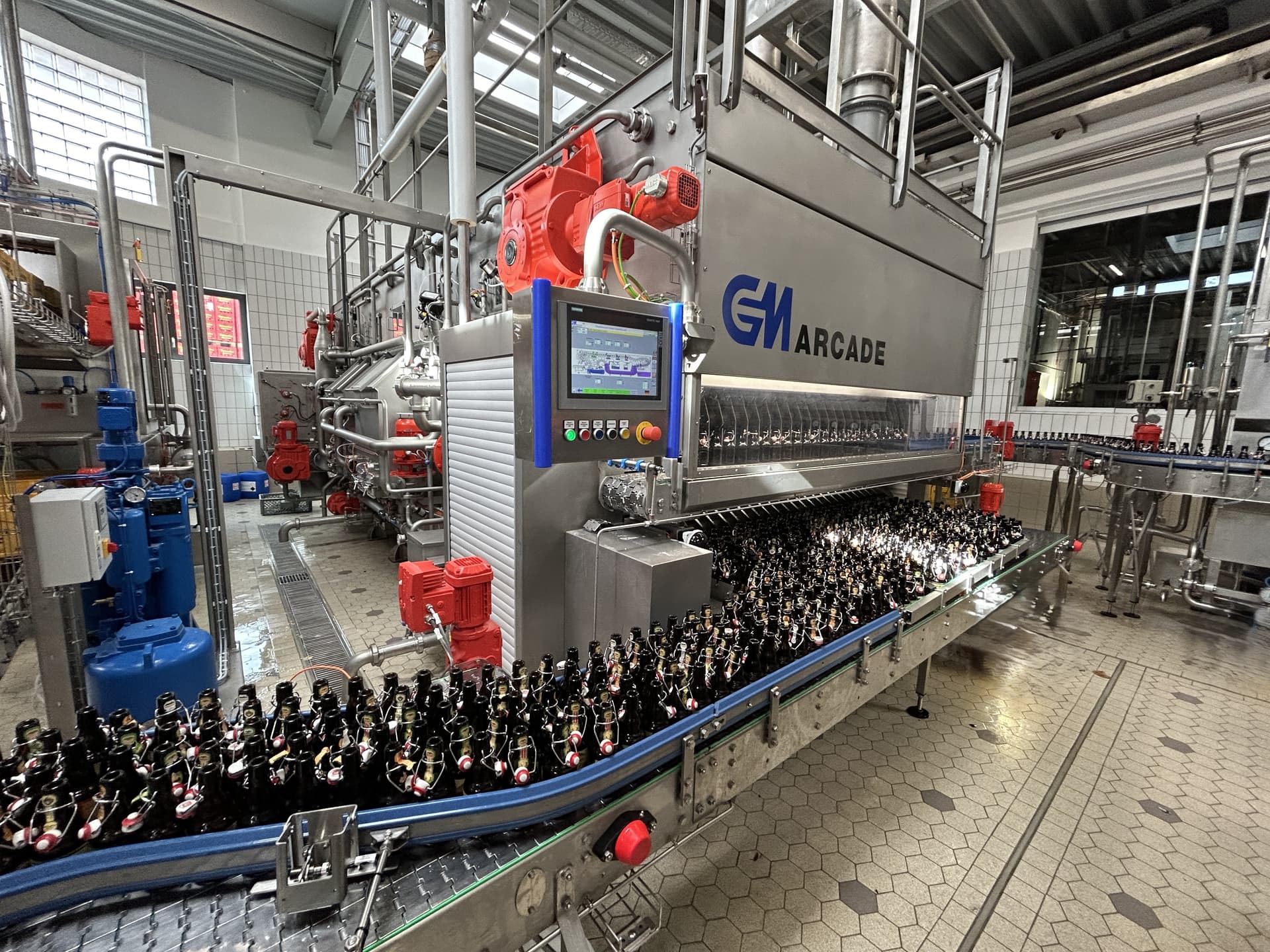

This ARCADE GEL 6 bottle washer was built in 2010 by the German manufacturer GM Gera. The machine is still in operation and can be inspected in person at any time. The ARCADE GEL 6 is fully functional and must be replaced due to an increase in performance.

Technical details

• Nominal output: 33,000 bph
• Control range: 13,200 - 36,300 bph
• Chain pitch: 169 mm
• Cell pitch: 110 mm
• Bottle cells per row: 30 pieces
• Total bottle cells: 7,860 pieces
• Bottle cells, loaded: 7,680 pieces
• Consumption
  • Compressed air: 1m³
  • Steam (operation): 489 kg/ h
  • Steam (heating): 4,430 kg/ h
  • Electrical power: 48.4 kW
  • Water: 7.35 m³/ h

• Bath volume

  • Pre-soak: 2,263 l
  • Pre-caustic: 7,240 l
  • Caustic 1: 31,755 l
  • Caustic 2: 350 l
  • Hot water 1: 350 l
  • Hot water 2: 350 l
  • Cold water: 350 l
