Overview

This complete filling line for single-use glass was delivered in 2019. Commissioning was stopped in Q1 2020, and resumed in Q4 2021. The line has been running 2/3 days per week since Q4 2021. The line can do 20 variations of bottles including 300ml, 330ml, 500ml, 568ml & 650ml.

Components

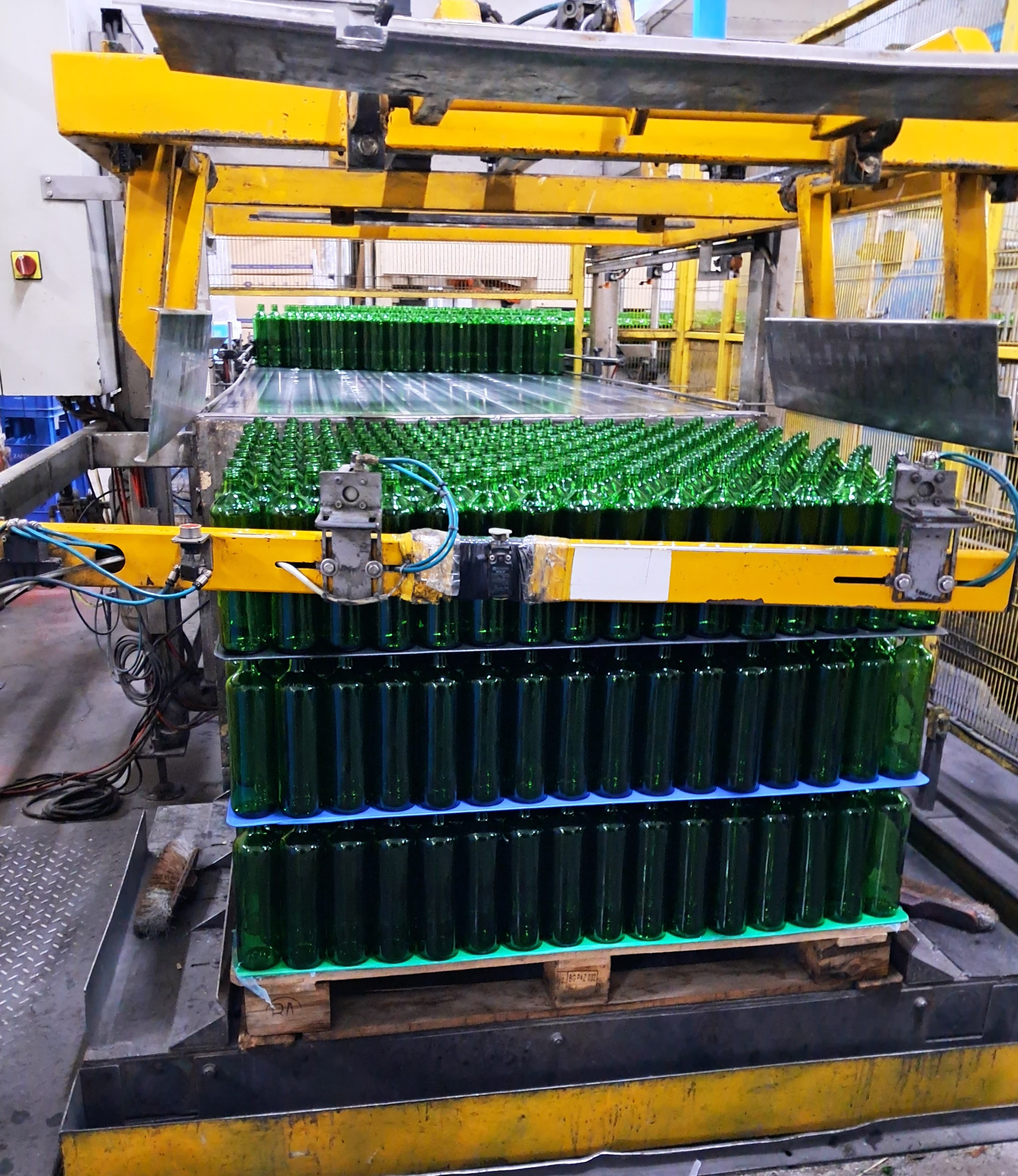

• Depalletiser | Emmeti | MT565 | 2016
  • Siemens Simatic controls, Harford control panel.
  • Bottle outfeed conveyor, plastic chain-link 1400 mm x 9.6 m with tapered outfeed on stainless steel supports.
• Krones Glideliner
  • Accumulator with tapered outfeed, 850 mm to 350 mm wide
• Empty bottle inspector | Krones | Linatronic | 2003
  • 60,000 bottles per hour
  • Throughfeed stainless steel slat chain conveyor
  • Height adjustable legs complete with dust canopy.
  • Left to right orientation
• Filling block for glass | Krones |  2003 rebuilt 2018, installed 2019
  • Capacity: 50.000 bottles/h at 0,33 l long-neck glass bottle
  • Formats: 0,33 l long-neck and 0,5 l glass bottle
  • Direction L-R
  • Filling product Beer at 4°C
  • Co2-content 5,6 g/l
  • ProLeit process control system, control console, Siemens S7-400, machine enclosure with
  • Adjustable stainless-steel legs
• Rinser | Variojet | 2004
  • 88 rinsing nozzles, electro-pneumatic valve control
  • 2-channel-execution, channel 1 sterile water, channel 2 sterile air

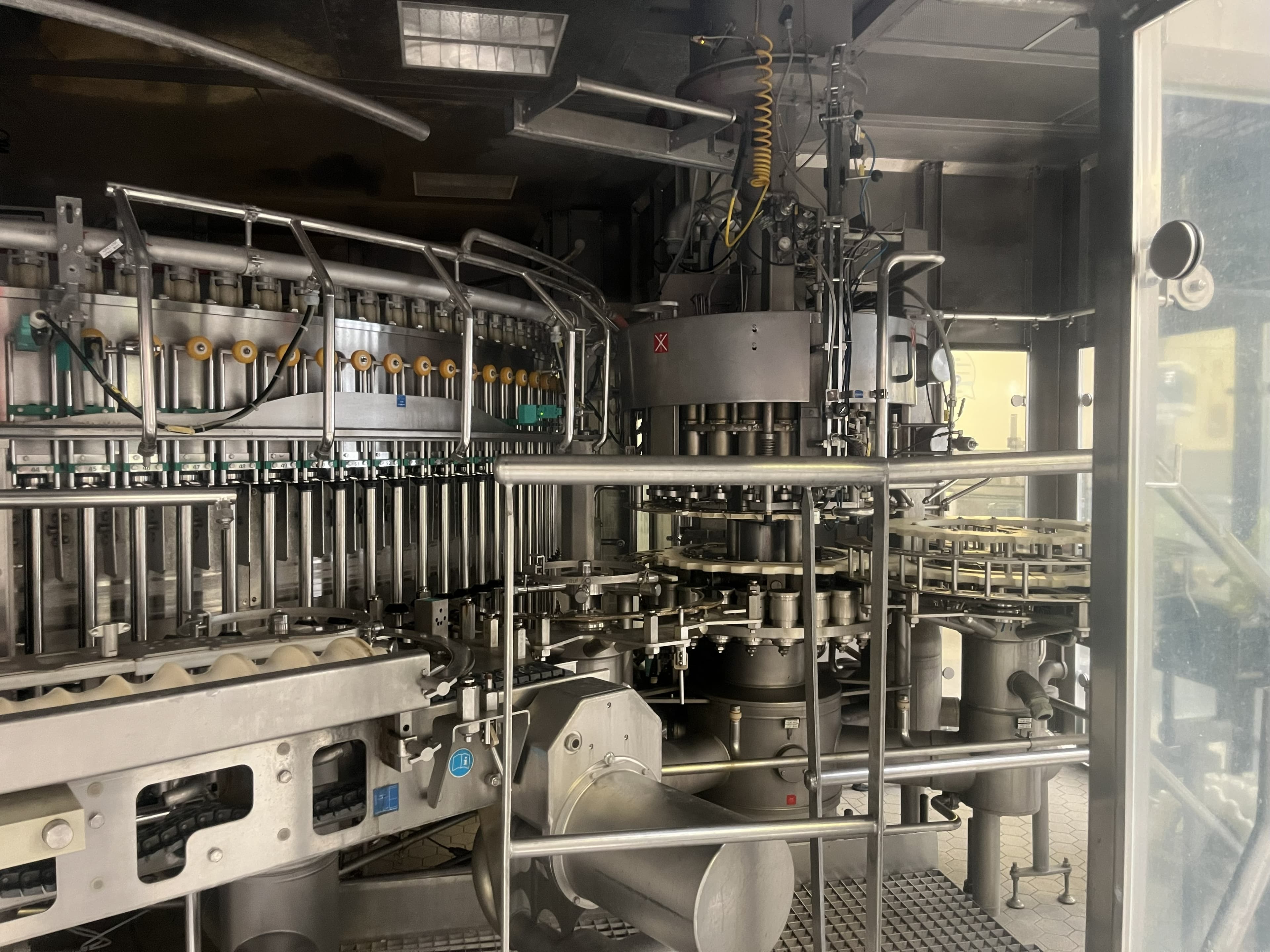

• Filler | Sensometic VP-VI 110-22-103 | 2002

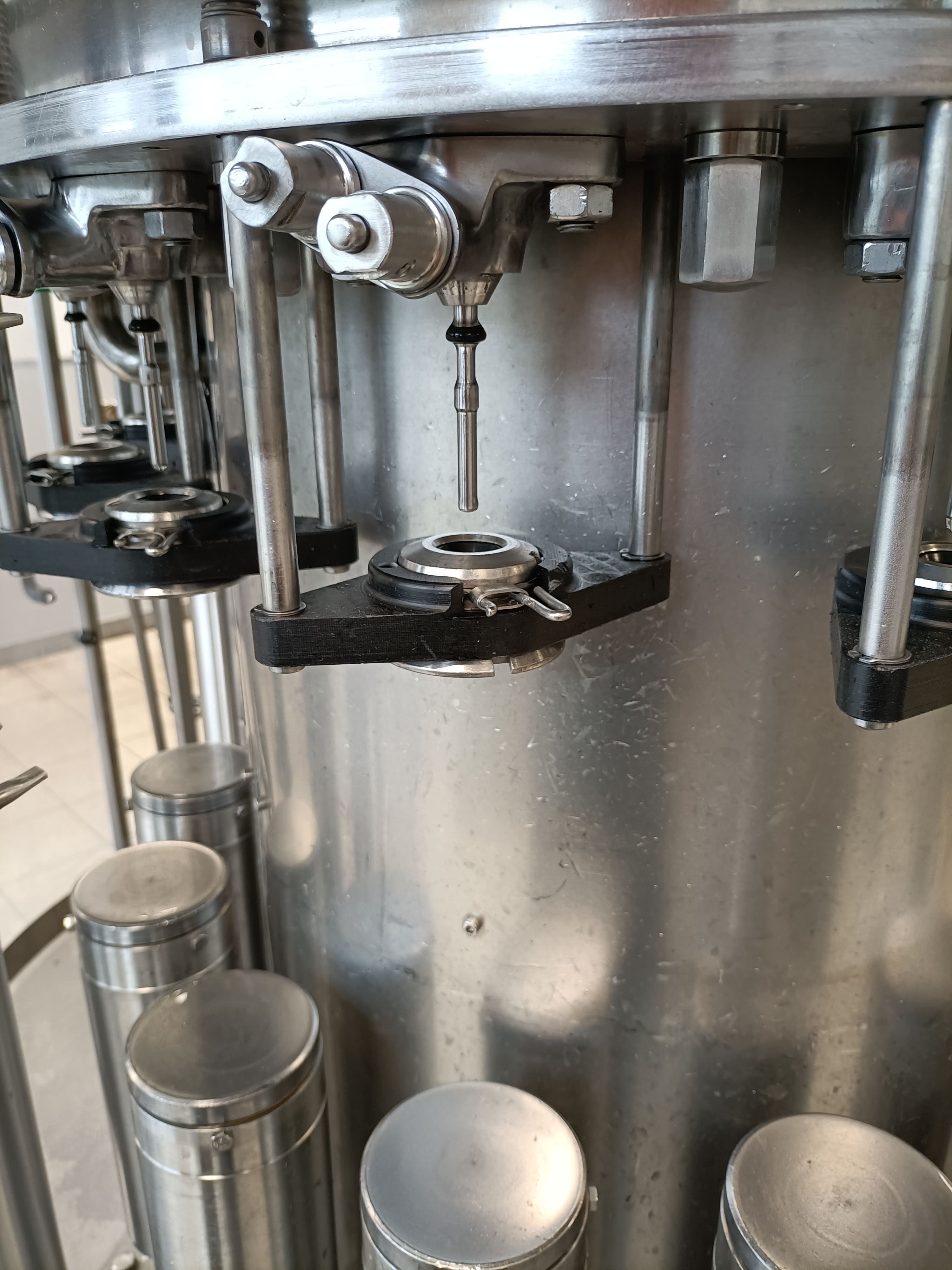

  • 110 filling valves, product contact and gas-contact parts in stainless steel
  • High-pressure injection system with automatic pressure control system
  • Motoric height adjustment system filler top part, automatic splinter washout system
  • Roof-table execution
• Crown capper
  • 22 capping heads, motoric height adjustment system
• Fill level control | Krones Checkmat 731 | 2019
  • Automatic throughfeed fill level and inspection system
  • With conveyor mounted cap and fill level sensors, pneumatic reject device.
• SEN twin deck bottle pasteurizer
  • 38,000 bottles per hour,
  • 5 m wide, 6 zone, 15 m throughfeed,
  • Steam connections, circulatory pumps, part stainless steel cased, top and bottom deck
  • in feed and outfeed conveyors.
  • Nalco water analysis system.
• Labeller | Krones Topmatic | 1800-45-8-9-130 | 2001
  • 3-head
  • Orientation: Left to right
  • Front, back & neck label application, 3 x Krones Unipump-4 adhesive pumps,
  • Domino type D620i laser coding machine with Domino DPX 1000 control
  • Krones Checkmat label placement inspection system (sensor on 4 th starwheel) with pneumatic reject device and conveyor.
  • Packaging Creative Systems in feed and outfeed labeller conveyors
• Multi pack system | Riverwood International | Autoflex 1500 | 2003
  • 4 & 6 bottle carry pack
  • Bottle diameter 51 – 70 mm
  • Bottle height 152 – 330 mm
• Kisters Combiline 420/50 automatic case packing machine
  • Automatic wraparound case packing, 50 cases per minute
  • Siemens Simatic touch panel controls
  • Nordson Problue Liberty 14 hot melt glue application
  • Videojet 3330 laser coding system
  • Outfeed shrink tunnel
• Krones Multidivider automatic throughfeed case lane divider and positioning system with outfeed
  • 2m x 5m driven roller conveyor, safety enclosure and controls
• Kettner Pressant Universal case palletiser
  • Layer type with empty pallet magazine and infeed,
  • throughfeed driven roller pallet conveyor, control console, safety enclosure,
  • photoelectric guards
• Haloila Octopus automatic rotary ring pallet stretch wrapping machine, 2400 mm maximum pallet
• Extensive conveyors available
• Safety enclosures
