Overview

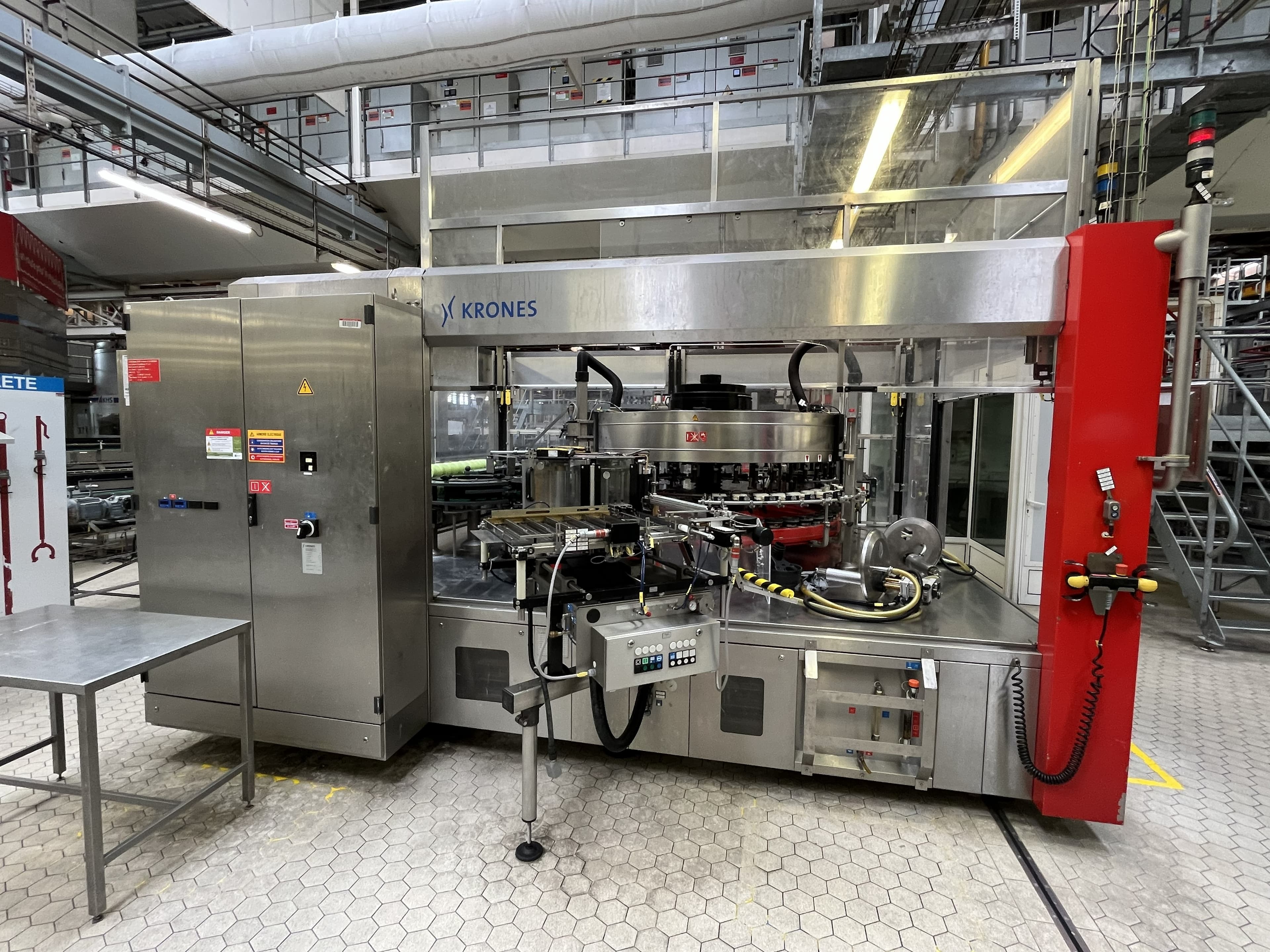

The machine was manufactured in 2001 by the German company Krones. The Topmatic was completely overhauled and equipped with new dosing units. This machine can be put into operation immediately.

Technical data

• Capacity: 30.000 revolutions per hour
• Running direction: RM left run
• Feeding: Normal from left (in) to right (out)
• Cold glue unit: PWL 370 and PWL 300

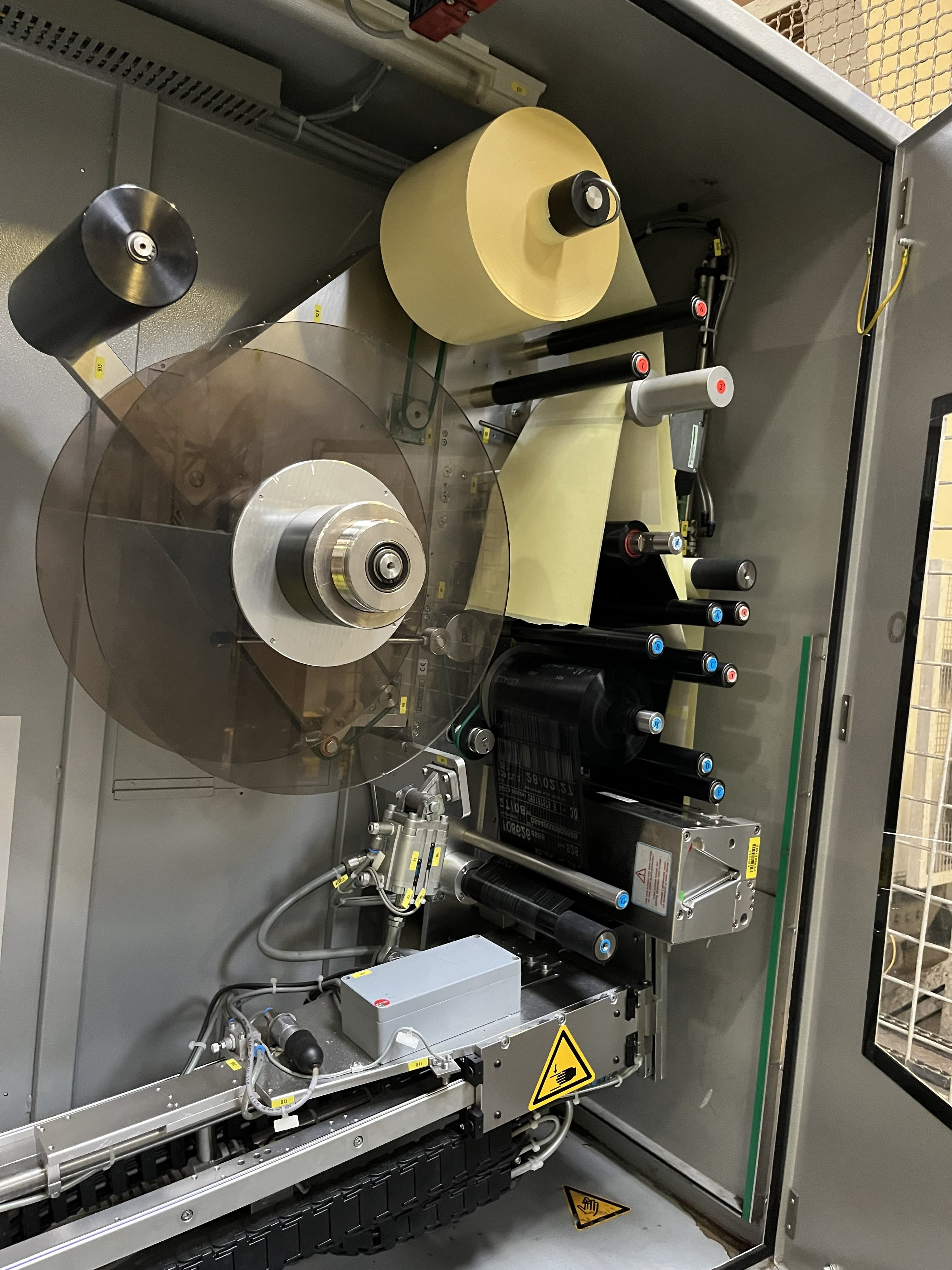

• PSL aggregate 3 x PSL aggregate
• Bottle table: Servo controlled
• Guide: Linear
• Label L=: min. 40mm, max. 130mm
• Bottle diameter: min. 50mm, max. 110mm
• Bottle height (H): min. 150mm, max. 350mm
• Voltage: 230/400V
• Electricity: 3PH/PEN
• Rated frequency: 50 Hz
• Control voltage: 24 V
• Label: paper label: body, neck and back, PSL: 3 labels
• Machine dimensions: L=2400 W=1950 H=2300
