Overview

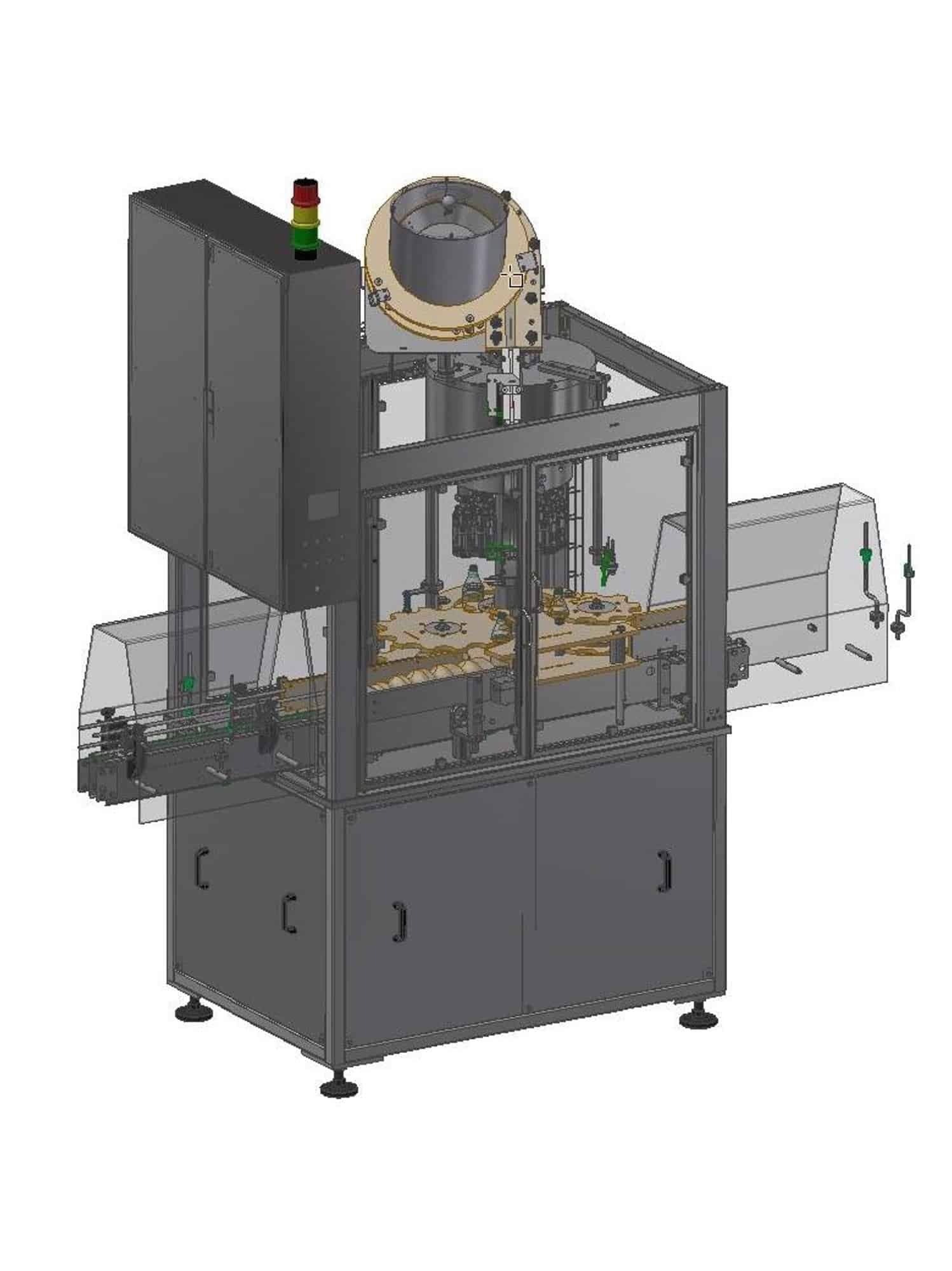

Automatic screw capping machine PP2008, year of manufacture 2020, less than 300 operating hours.
The capping machine is designed for automatic capping of glass bottles with a capacity of 500 – 1000 ml. Metal Closure Aluminium closures have been processed (MCA 28). Due to a change in production (purchase of a filler with a blocked capper) this machine has become redundant and can therefore be offered in absolutely new condition with less than 300 operating hours.

Tech Specs:

• Capacity: 20,000 bph
• For glass bottles 500 – 1,000 ml

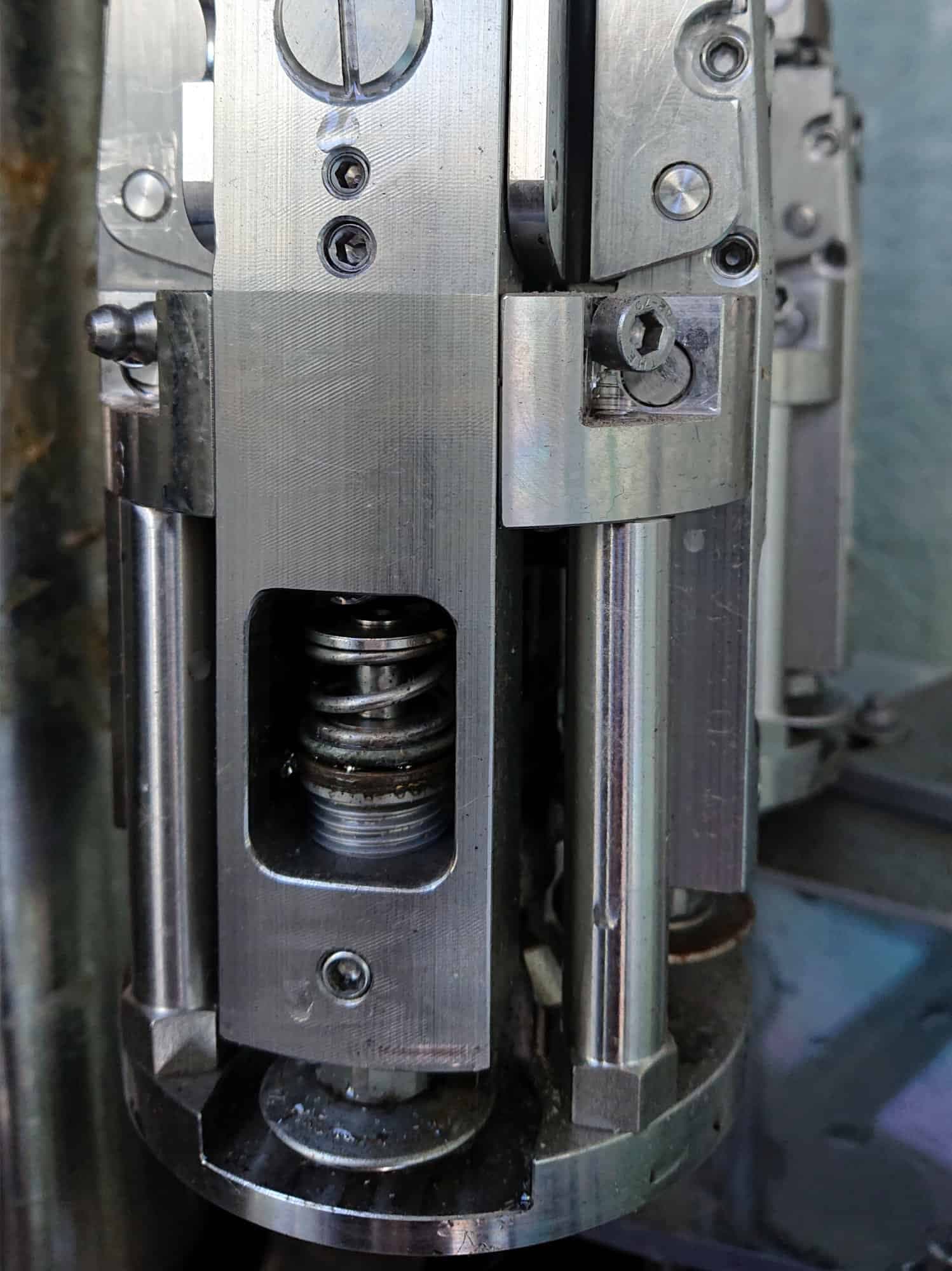

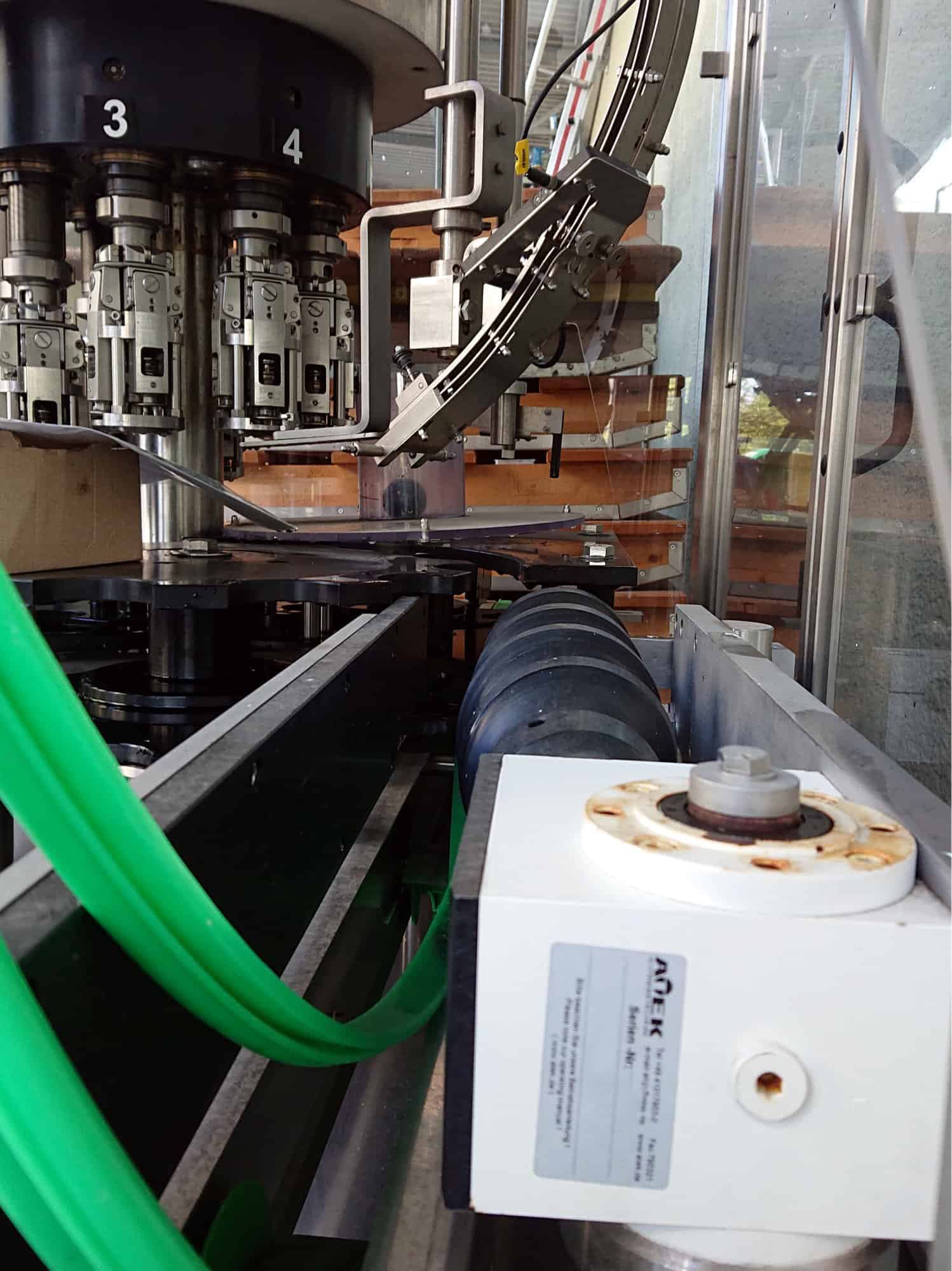

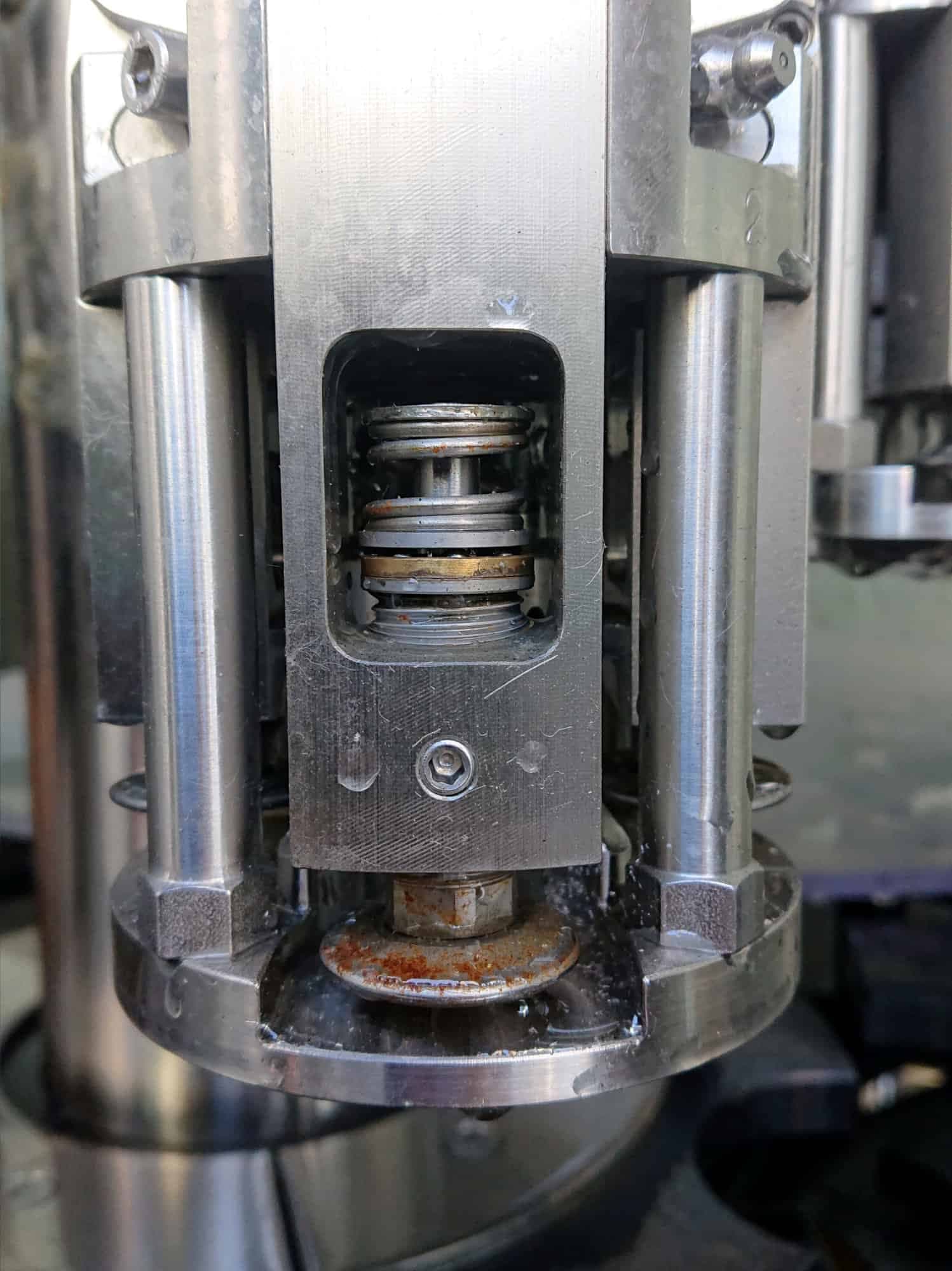

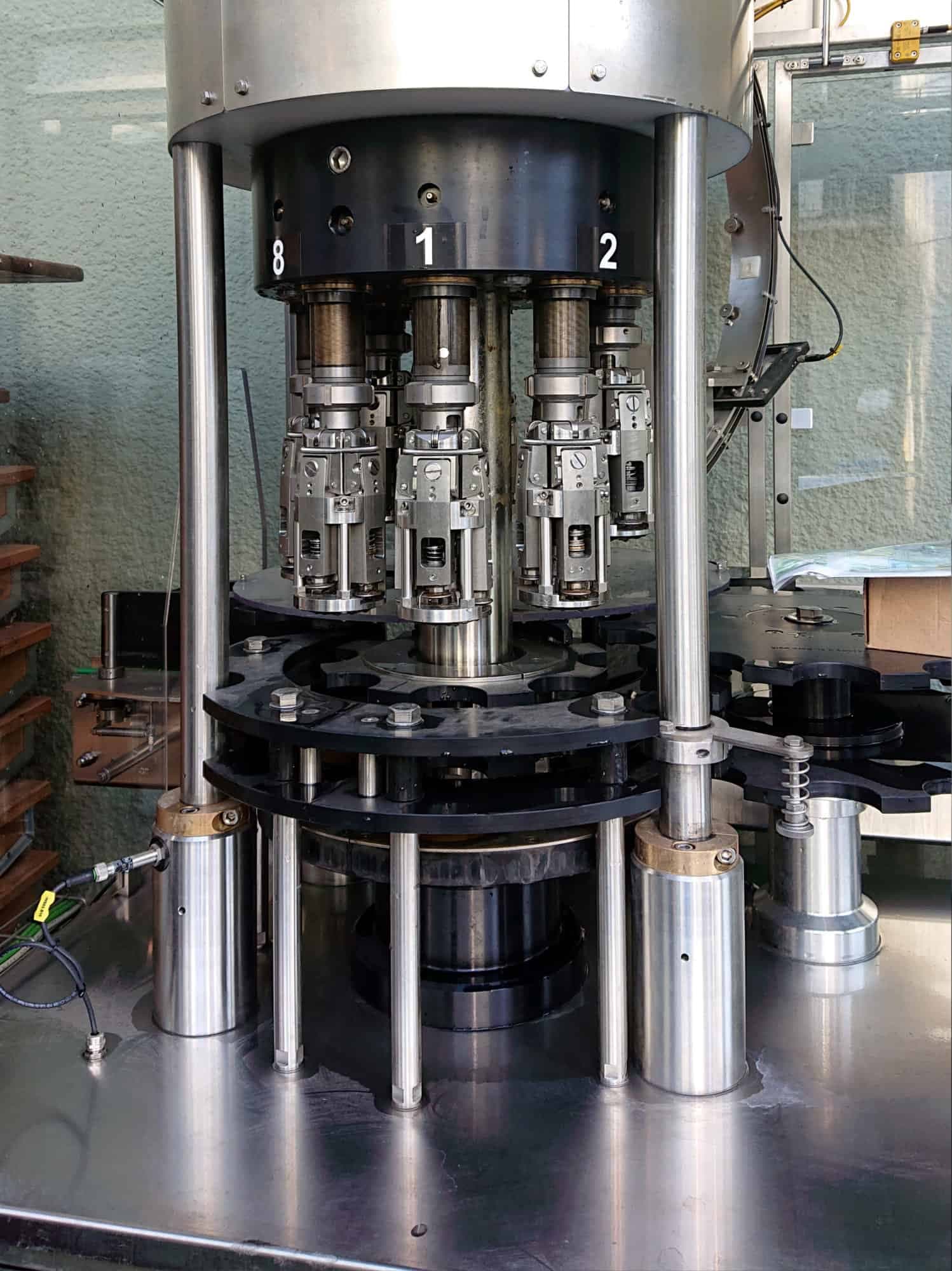

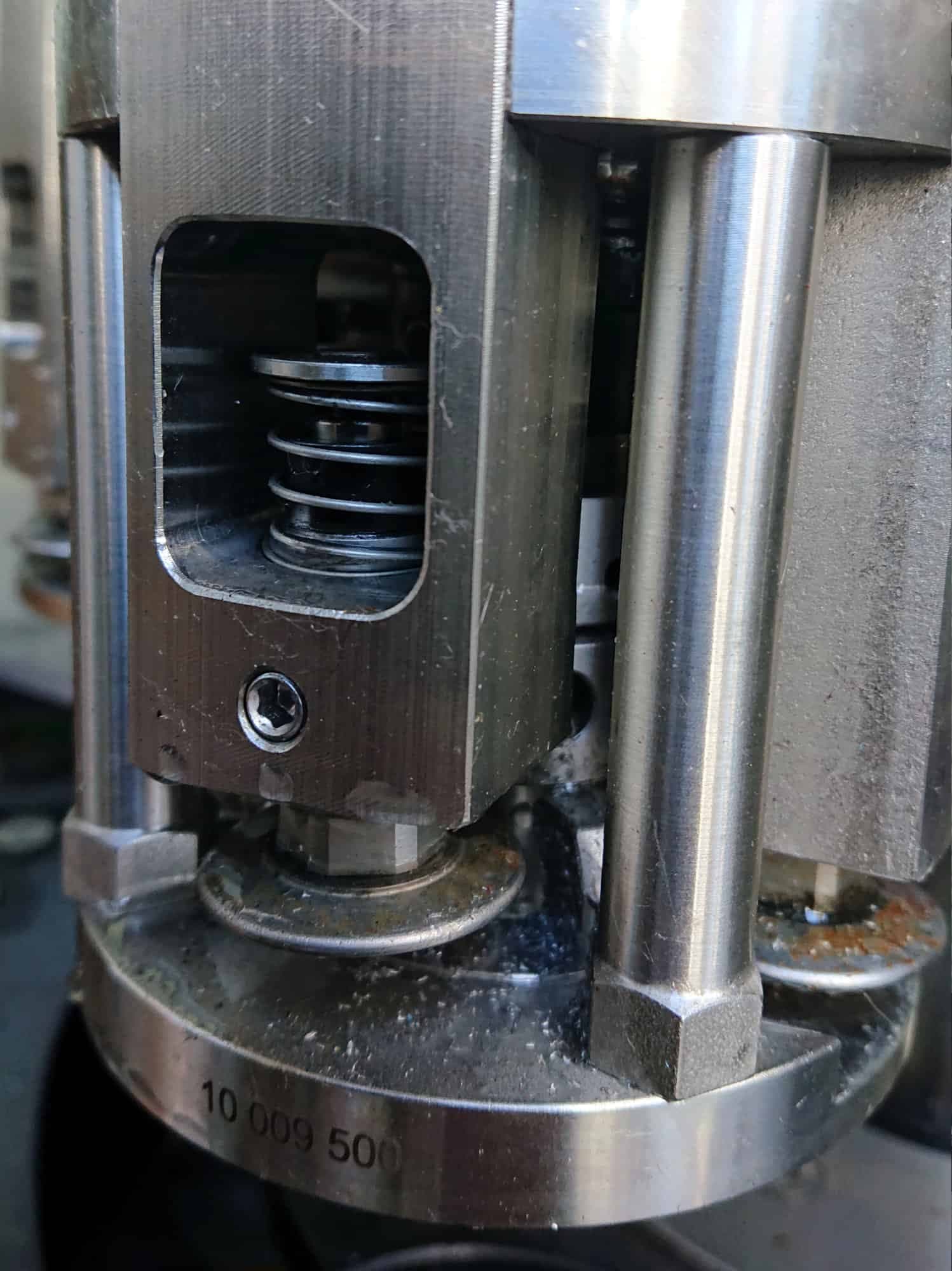

• 8 sealing heads
• Bottle/container diameter [mm] 55-93
• Bottle/container height [mm] 120-360
• Closure types MCA 28 + Talog
• Control Siemens SIMATIC S7-1200

Features:

• Incredible few operating hours, mint condition

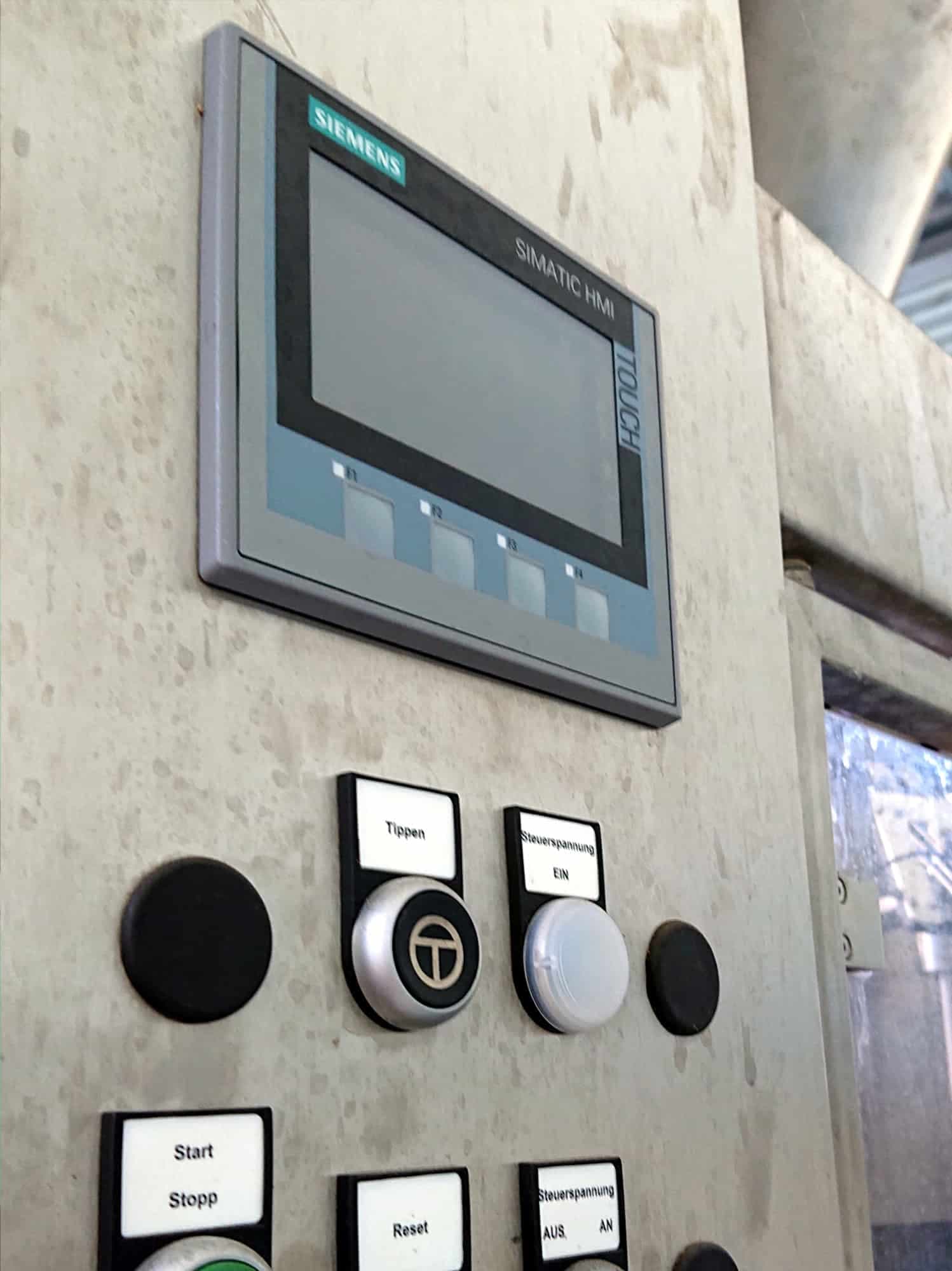

• Integrated control cabinet with touch display
• Protective housing/emergency function according to Machinery Directive 2006/42/EC
• Suitable for MCA 28 / Tagalog closures

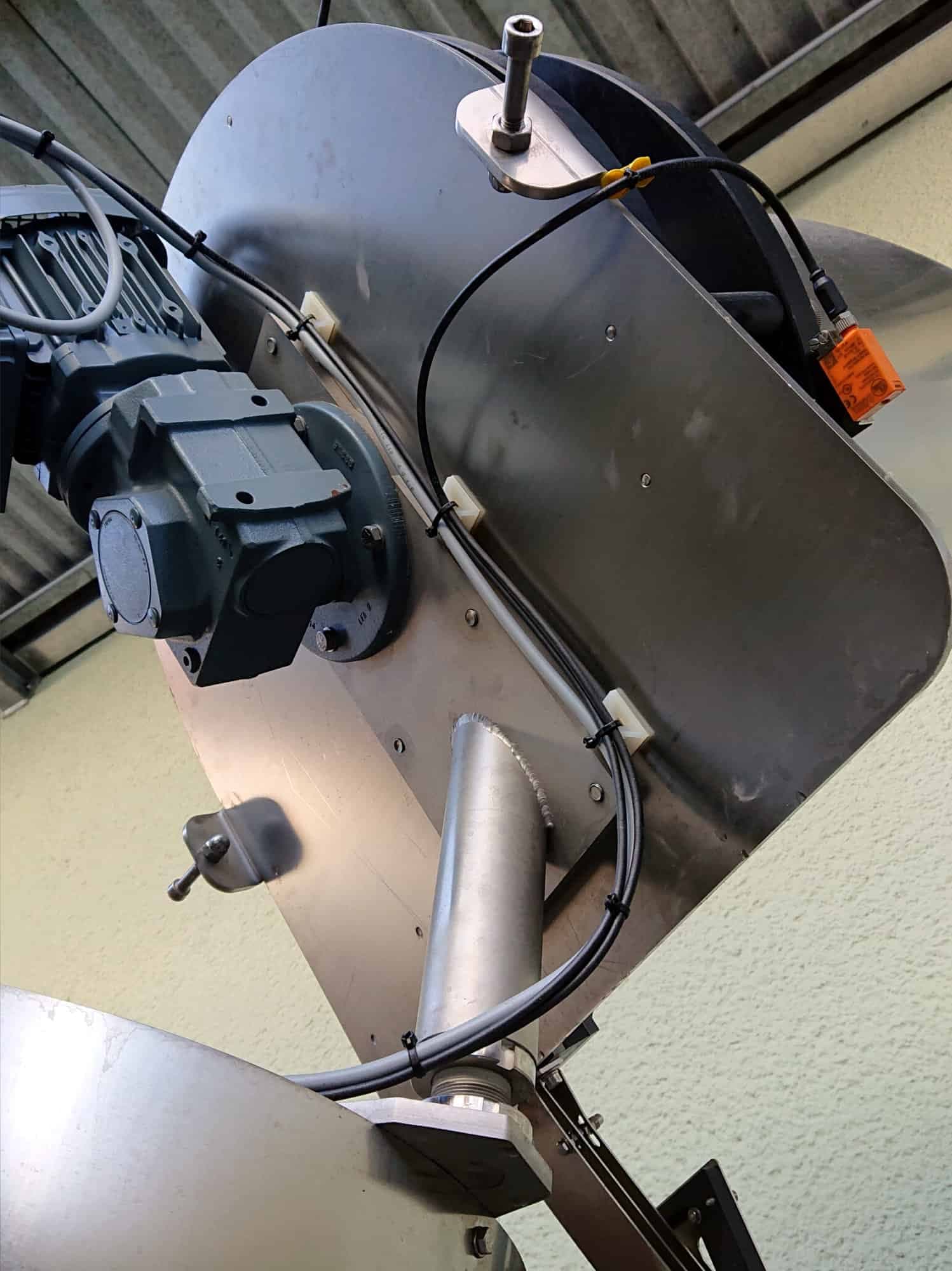

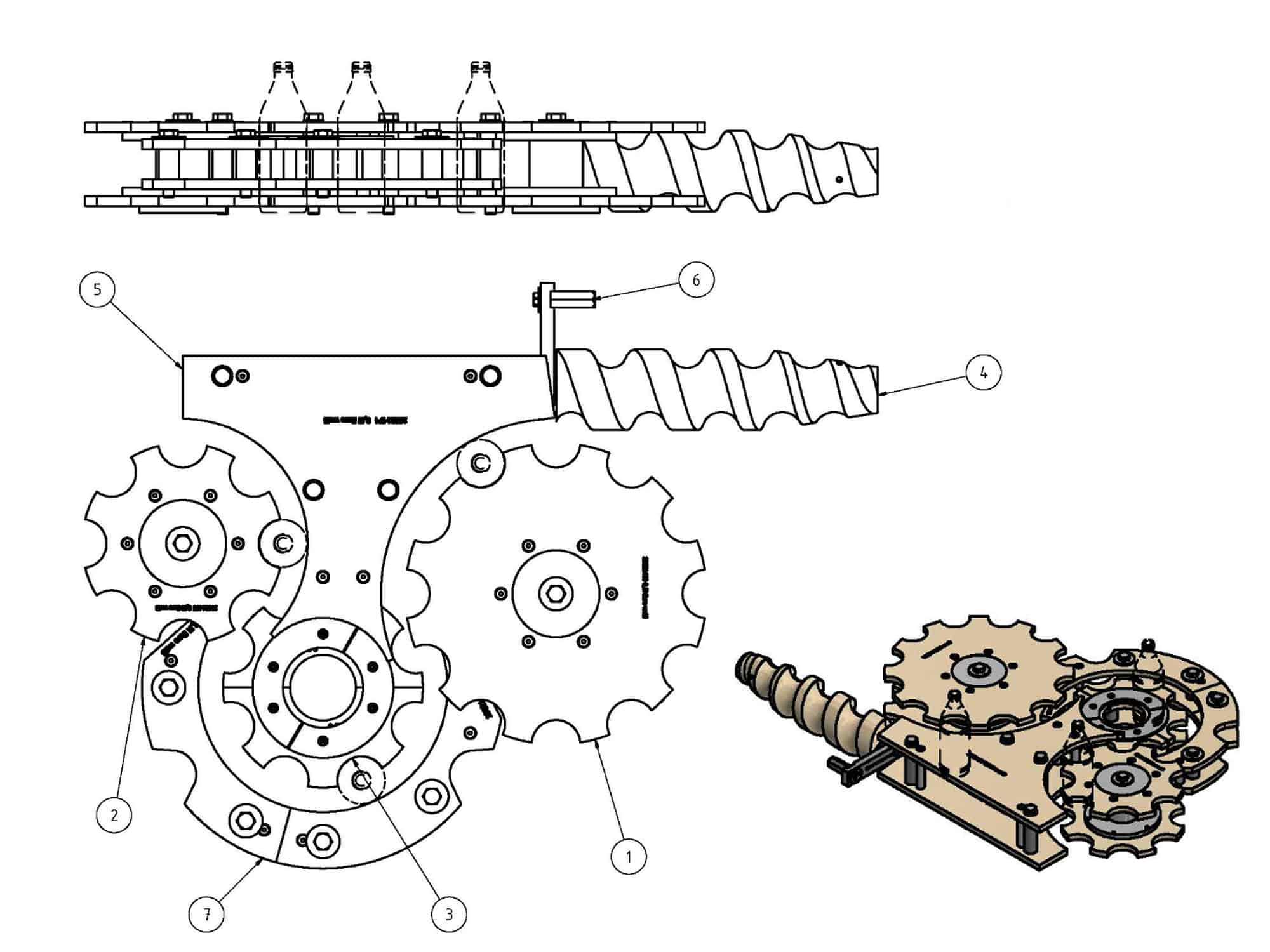

• Format parts and Closure Agitator included

Dimensions and weight:

• Length [mm] 2986
• Width [mm] 1090
• Height [mm] 3225
• Machine weight [kg] 1600
• Connection values
• Operating voltage [V, Hz] 400V AC, 50Hz
• Control voltage [V] 230V AC
• Power [kW] 8,5
• Noise emissions
• Determined average value [dB (A)] Lpa ≤ 80
