Overview

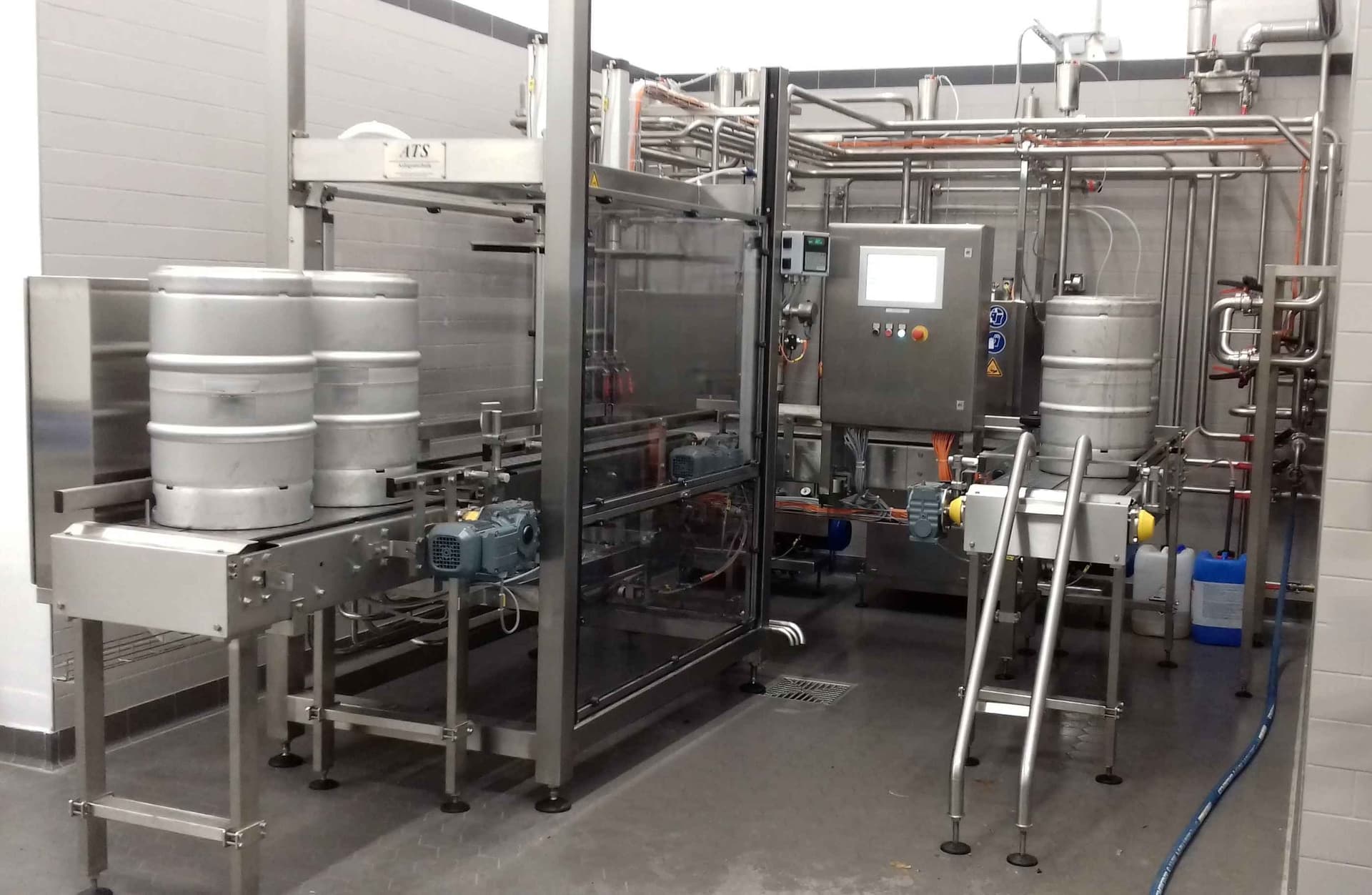

This KEG bottling plant was built by M+F KEG Technik in 2018. It is part of an entire brewery, is still in production and will soon be professionally dismantled. The machine can be viewed in person at any time.

Technical details

• Last operated with 25 KEG/ h (50l) or 35 KEG/ h (<30l)
• Station 1: Interior cleaning
• Station 2: Rinsing, sterilization and filling
• Fully automatic with Siemens S7 control system
• Touch panel
• Dimensions
  • Length: 1,870 mm
  • Width: 1,420 mm
  • Height: 2,200 mm +/- 50 mm
  • Height of infeed conveyor: 720 mm +/- 50mm
  • Outfeed conveyor height: 650 mm +/- 50 mm
• Electrical connection
  • Voltage: 230/ 400 V, 50 Hz, 3 phases
  • Connected load: 1 kW (without tank pumps)
