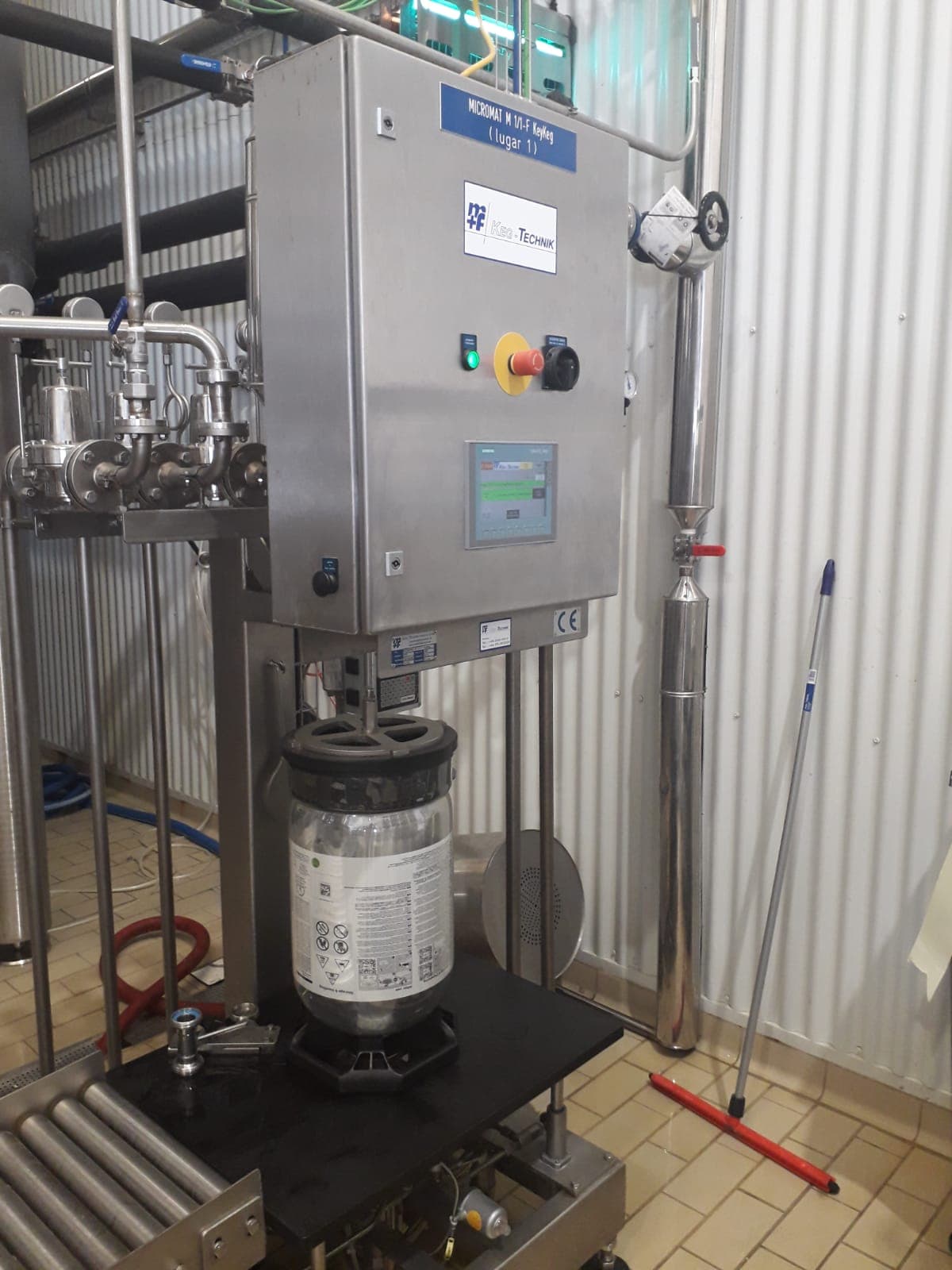

M+F KEG-Technik MICROMAT M 1/1-F KEG Filling Machine (2016)

20,000 (ExWorks)

Get an official quote

Country:

Spain

Year:

2016

Category:

Keg Technology

Manufacturer:

M+F KEG-Technik

Model:

MICROMAT M 1/1-F

Availability:

Immediately

SKU:

ES-KEG-MFK-2016-00001

Overview

The MICROMAT M 1/1-F KeyKeg filling machine is a fully equipped solution designed to streamline and automate the filling process for 50-60 KeyKegs per hour. This machine comes with everything necessary for high-efficiency operations, including a complete CIP (Cleaning in Place) system, ensuring that the cleaning process is integrated and automated, maintaining optimal hygiene without the need for disassembly.

Technical Data

  • Capacity: 50-60 KeyKegs per hour
  • Dimensions:Depth: 1,300 mm Width: 800 mm Height: 2,200 mm ± 50 Working station height: 600 mm ± 50
  • Connections:Product: DN 25 Media: DN 25 Control air: Socket ¾"
  • Electrical connections:Voltage: 230/400 V, 50 Hz / 480 V, 60 Hz Connection power: 1 kW (without tank pumps)
  • Noise level: Below 85 dB A

Key Features

  • Fully integrated CIP system: This allows for internal cleaning of the filling head and pipelines without manual intervention, ensuring hygiene and reducing downtime.
  • Control system: Siemens S7 with a user-friendly interface.
  • Robust construction: Stainless steel base frame and critical components.
  • This machine is ready to use, offering all the equipment needed for fast and efficient KEG filling operations​

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
