Overview

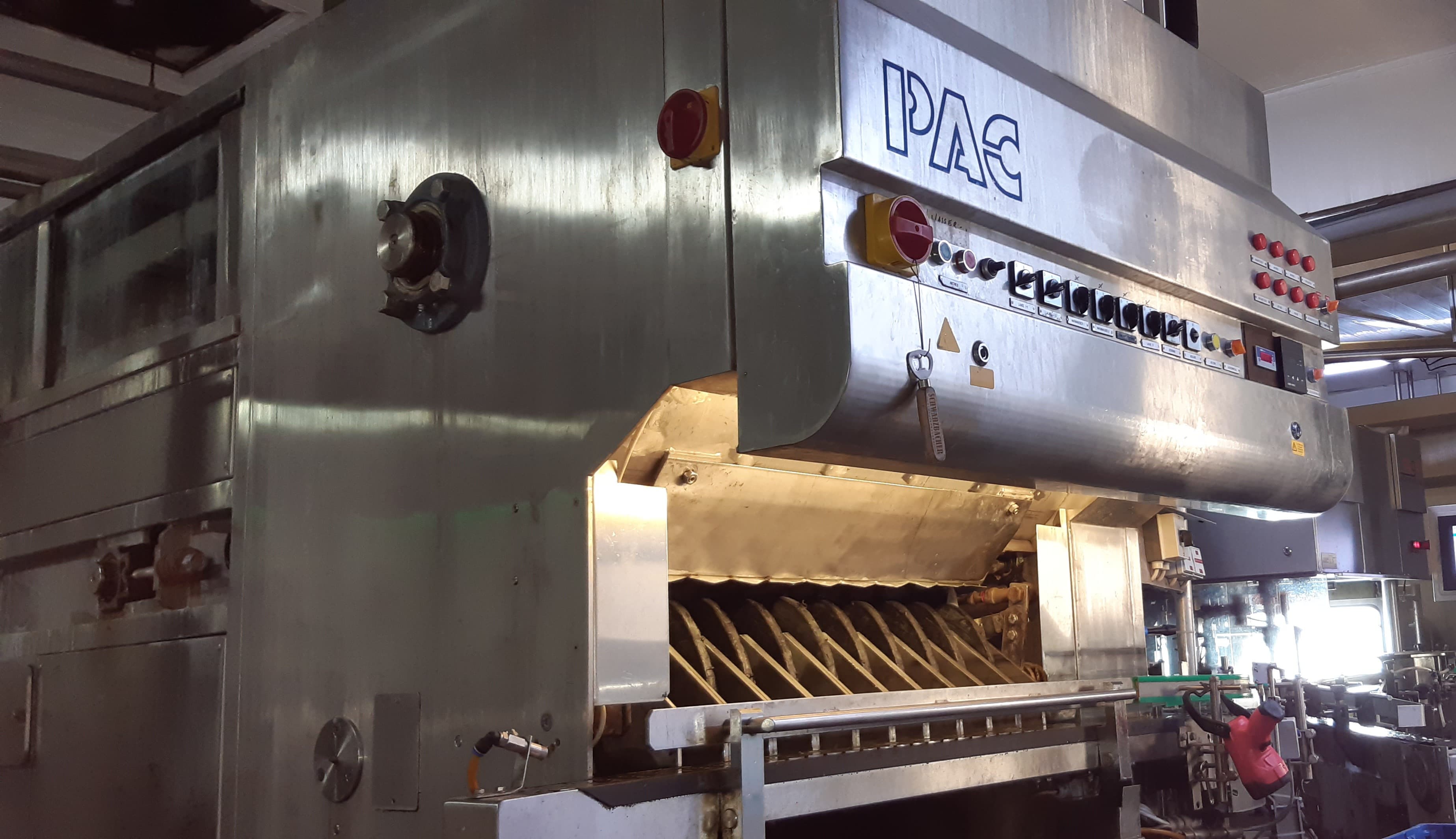

This bottle washer was built in 1995 by Swiss manufacturer PAC. The machine is out production and be viewed in person in our warehouse.

Techn. Details

1. Capacity:
2. 6,000 bph
3. Min/ Max: 3,000 bph – 6,300 bph
4. Bottle type: 0,5L, Euro, NRW, incl. Set of parts for 330ml vichy bottle
5. Bottles per row: 12
6. Bottles in the machine: 1,080
7. Bottle cell carriers: 96
8. Dimensions:
9. Length: 6,000 mm
10. Width: 1,545 mm
11. Height: 2,175 mm (without feet)
12. Weight: approx. 5,800 kg
13. Water consumption: 3,6 m³/h
14. Heat consumption 80°C: 480 kJ/ h x 1000
15. Electrical consumption: 11 kW
16. Incl. Spare parts
17. Motors for rear and front drive
18. Bottle cell carriers
19. Wear parts
20. Machine body fully in stainless steel
21. All hot zones with 5cm insulation
22. Label extraction belt
23. Heat exchanger in stainless steel for low pressure steam 116°C-120°C at 0,7 - 1 bar
24. Self cleaning spray tubes in stainless steel
