Rabek Engineering 20-25 hl Brewhouse (2014)
Country:
France
Year:
2014
Category:
Brewing & Fermenting
Manufacturer:
Rabek Engineering
Model:
20-25 hl
Availability:
Sold
SKU:
FR-OTH-RAB-2014-00001
Overview

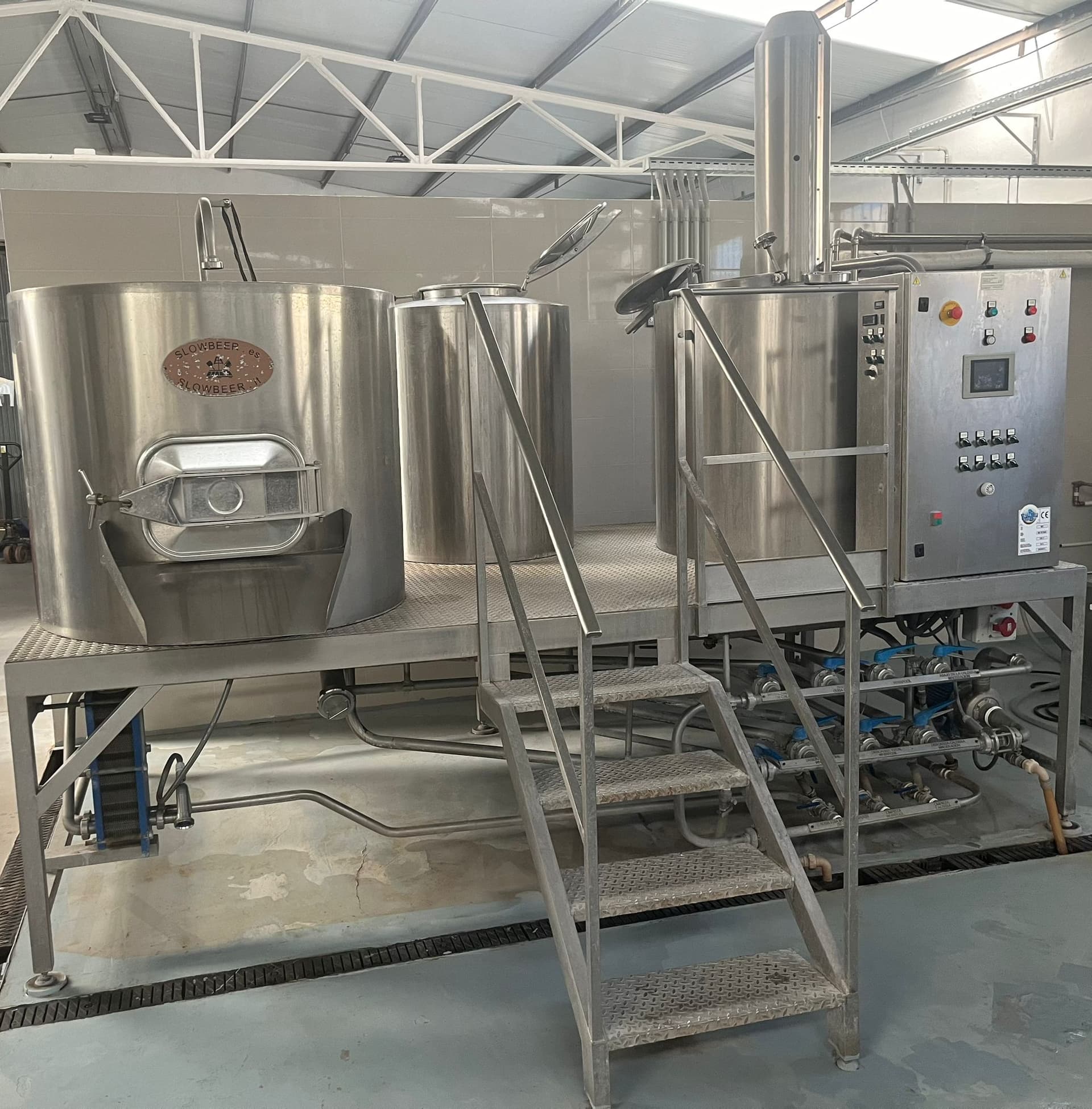

This complete brewhouse was manufactured and put into operation in 2014. It is semi-automatic, heated by steam and has a total capacity of 20 - 25hl. The brewhouse is still in operation and can be visited.
- Capacity
- 25 hl at 13% plato
- 22 hl at 15,5% plato
- 20 hl at 17% plato
Components
Malt processing
- Conveying, grinding and feeding to the mash tun
- 1000kg malt silo
- Mashing time: 20 - 30 min
- SPS controlled
Mash and boiling vat
- All stainless steel 304
- Double walled single mash tun
- Agitator with 2 speeds
- Temperature probe
- CIP connection
Filter tank
- 3.500 l
- Removable filter grids
- CIP connection
- Automatic cleaning
Whirlpool tank
- 3.500 l
- Lateral wort inlet
- CIP connection
Hot water tank
Control system
- Automatic crushing, mashing, filtering, rinsing and boiling of the wort
- Storage of up to 10 beer recipes
Heat exchanger
- 2,500 l/ h
- Oxygen supply
Brewhouse
- On stainless steel platform
- Density measurement by means of cooling tube
Steam boiler
- Gas-fired steam boiler for 300 kg of steam
System for softening and treatment of water entering the boiler
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
If you have any further questions please contact us
Carsten Hormes
Your Account Manager
CLICK TO CHAT ON WHATSAPP
Related Products
Spadoni - 2018 - Spain
Brewhouse
130,000 €

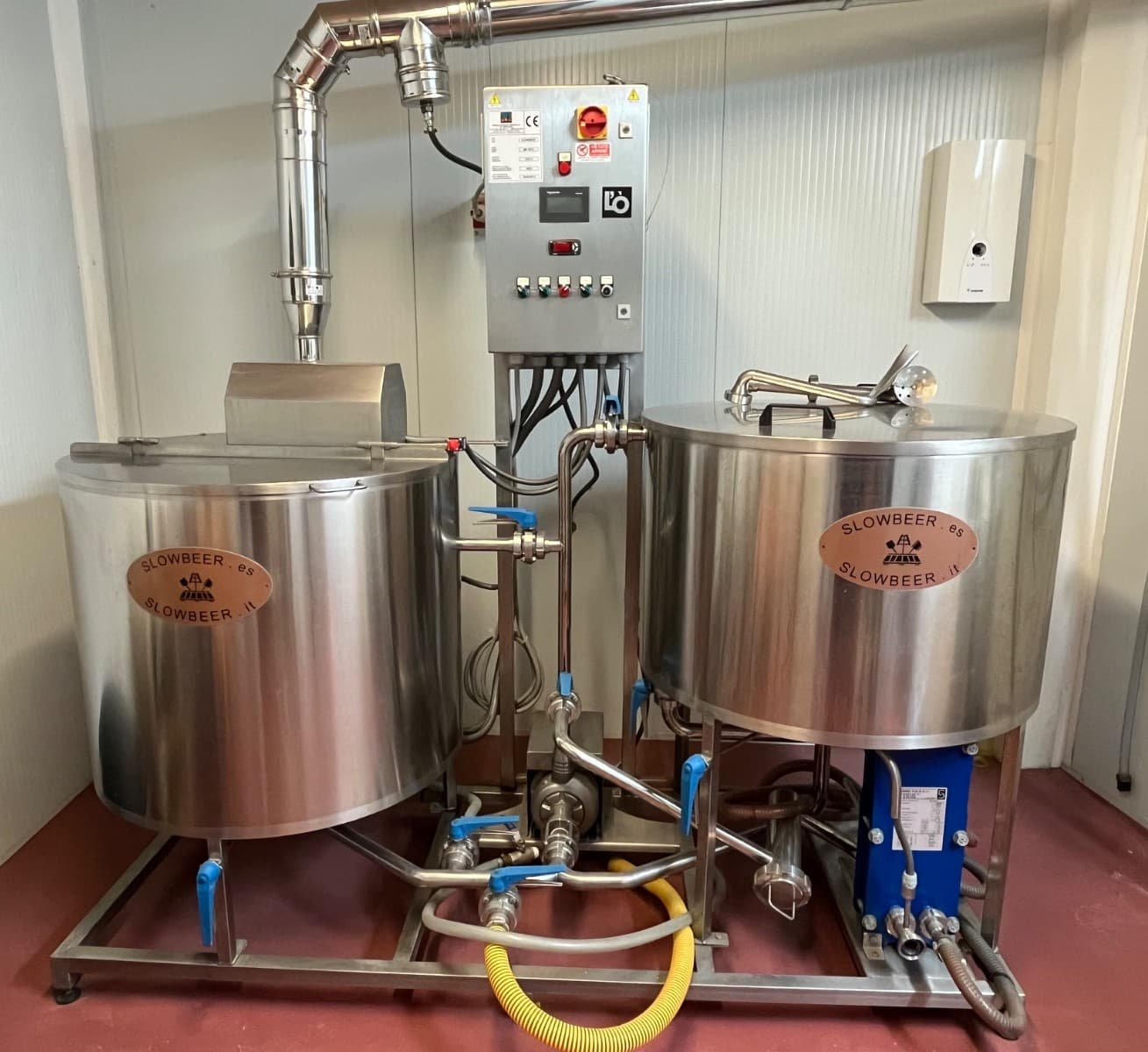

Slowbeer - 2019 - Spain
