Overview

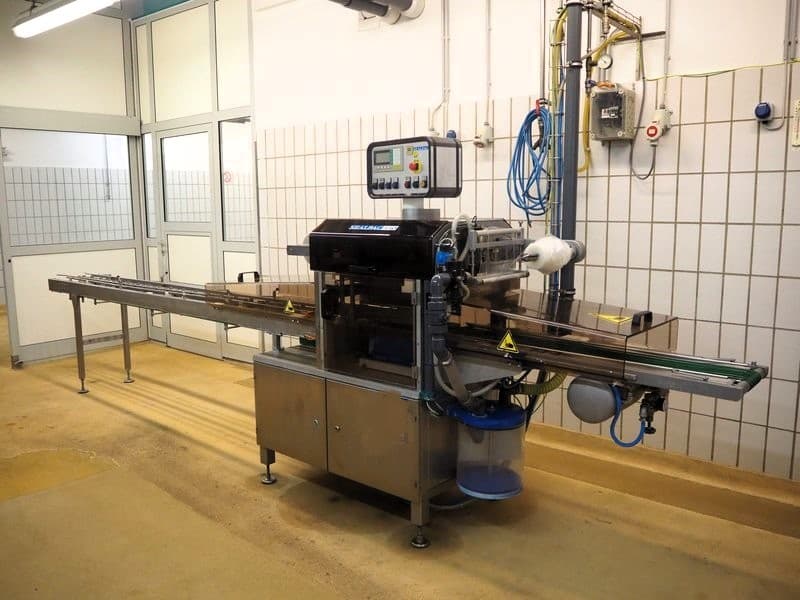

This Automatic Double-Clipper, type: Tipper Tie Doppel-Clipautomat TT 1512 Standard was built in 2018 in Germany.

The Swipper can be connected to all kind of filling machines. It closes the portions precisely into single, chain and ring sausages without sausage meat residues in the sausage tips. The Swipper is also suitable for many applications outside the meat industry. For the packaging of confectionery semi-finished products, cheese, soups or non-food products, the Swipper is the ideal sealing system.

Technical Details

• Width 1564 mm
• Depth 1127 mm
• Height 1955 mm
• Connection voltage 3x 400V/ 50 Hz or 60 Hz
• Connected load 5.5 kW
• Protection class IP 65
• Air consumption 0.23 m3/cycle compressed air 6-7 bar
• Caliber range 20 - 65 mm (65 mm max.)
• Clock speed up to 200 ports/min
• Tools 15 and 12 Pitch
• Sound pressure level LpA = 75dB(A) (according to EN ISO 1204)
• Weight 450 kg

Scope of delivery

• Automatic Double-Clipper | TipperTie Swipper TT 15 /12 | 2018
