Overview

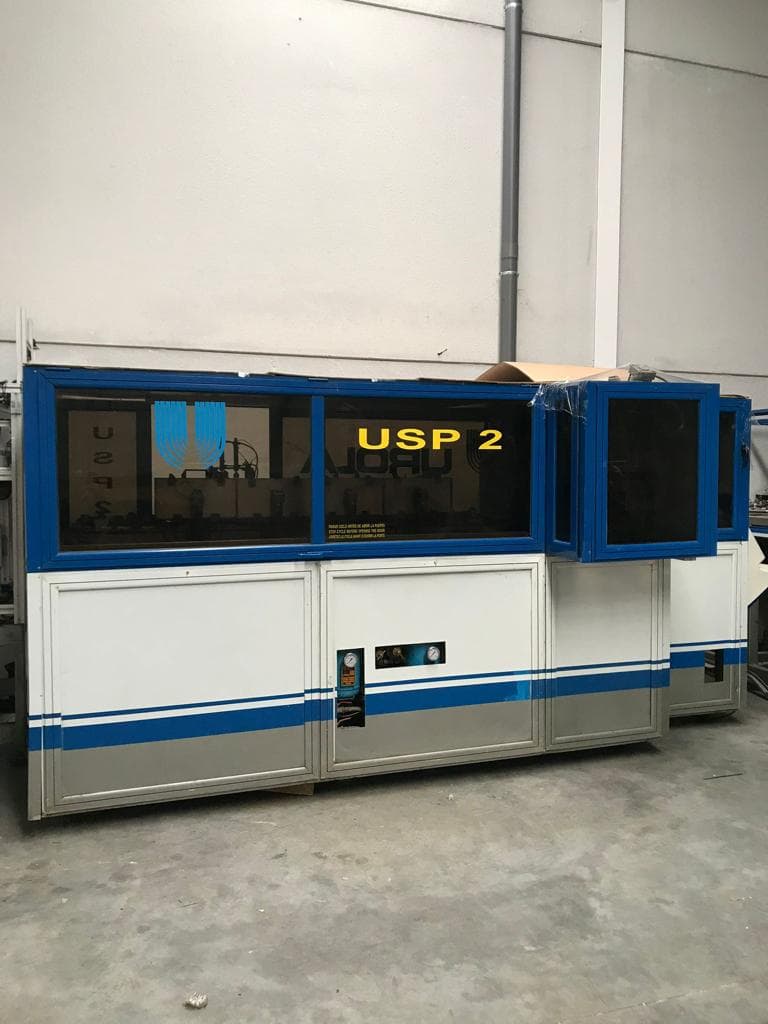

This extrusion blow moulder from Spanisch manufacturer Urola was built in 2019. This machine is available because the owner increases capacities. It is still in running condition and be viewed in person anytime.

Technical Details

• Capacity: 1000 bph at 3L
• Containers up to 2 litres in HDPE, PP, and other different materials used in multilayer applications (EVOH, Polyamide, adhesives, etc.)
• Number of cavities: 6
• Max. closing force: 5,000 kg
• Max. blowing pressure: 6,5 bar
• Number of extruder zones: 5+1 joining zone
• Installed extruder: 155kW (108kW extruder motor)
• Max. plasticising: 300 kg/ h
• Floor dimensions machine: 6,870x5,820 mm
• Dimensions electrical cabinet: 1,600x500x2000 mm
• Weight: 16,000 kg
• Connections:
  • Power supply: 400V, 50Hz, 173kW
  • Low pressure pneumatic supply
  • Cooling water supply
